Module

class fridom.framework.modules.module.Module

Bases: object

Base class for all modules.

Description

A module is a component of the model that is executed at each time step. It can for example be a tendency term, a parameterization, or a diagnostic as for example outputting the model state to a file.

Required methods: 1. __init__(self, …) -> None: The constructor only takes keyword argument which are stored as attributes. Always call the parent constructor with super().__init__(name, **kwargs). The name of the module is stored in the timing module and should not be too long. 2. update(self, mz: ModelState) -> None: This method is called by the model at each time step. It can for example update the tendency state mz.dz based on the model state mz. Or write the model state to a file. Make sure to wrap the method with the @update_module decorator.

Optional methods: 1. start(self, mset: ModelSettingsBase) -> None: This method is called by the model when the module is started. It can for example open an output file. Make sure to wrap the method with the @start_module decorator. 2. stop(self) -> None: This method is called by the model when the module is stopped. It can for example close an output file. Make sure to wrap the method with the @stop_module decorator.

Parameters

namestr

The name of the module.

**kwargs

Keyword arguments that are stored as attributes of the module.

Flags

required_haloint

The number of halo points required by the module.

mpi_availablebool

Whether the module can be run in parallel.

execute_at_startbool

Whether the module should be executed before the first time step.

Examples

import fridom.framework as fr
class Increment(fr.modules.Module):
   def __init__(self):
       # sets the module name to "Increment", and the number to None
       super().__init__("Increment", number=None)
   @fr.modules.start_module
   def start(self):
       self.number = 0  # sets the number to 0
   @fr.modules.update_module
   def update(self, mz: fr.ModelSettingsBase) -> None:
       self.number += 1  # increments the number by 1
   @fr.modules.stop_module
   def stop(self):
       self.number = None  # sets the number to None

__init__() → None

Methods

__init__()
disable()	Enabling the module means that it will be executed at each time step.
enable()	Enabling the module means that it will be executed at each time step.
is_enabled()	Return whether the module is enabled or not.
reset()	Stop and start the module.
setup(mset)	Start the module
start()	Start the module
stop()	Stop the module
update(mz)	Update the module

Attributes

diff_module	The differentiation module to be used by this module.
grid	The grid of the model settings
info	Return a dictionary with information about the time stepper.
interp_module	The interpolation module to be used by this module.
mset	The model settings
name
required_halo

Examples using fridom.framework.modules.Module

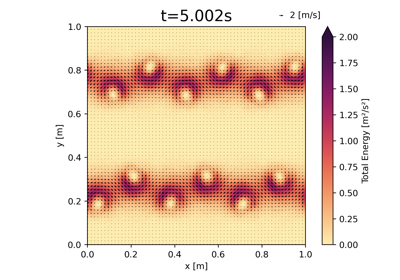

Barotropic Jet

Barotropic Jet

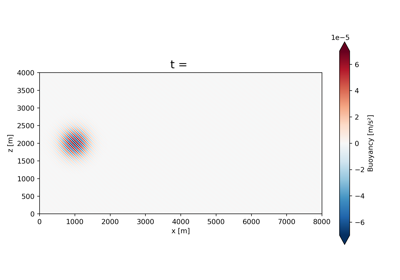

Reflecting Wave Package

Reflecting Wave Package

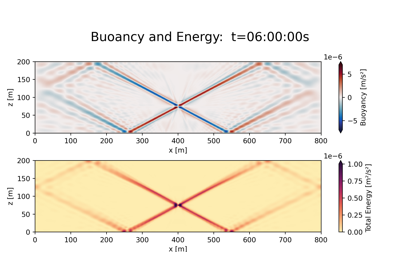

Internal Gravity Wave Maker

Internal Gravity Wave Maker

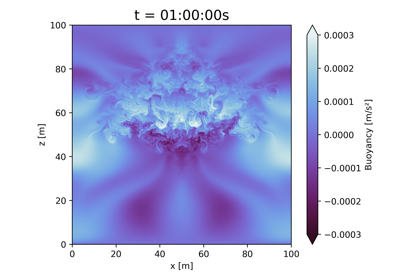

Convection and Closures

Convection and Closures

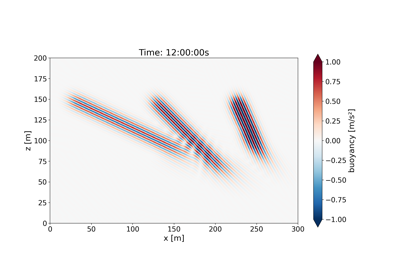

Multiple Wave Makers

Multiple Wave Makers

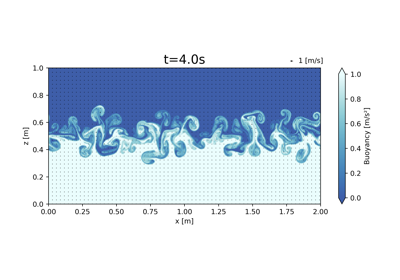

Rayleigh-Taylor Instability

Rayleigh-Taylor Instability

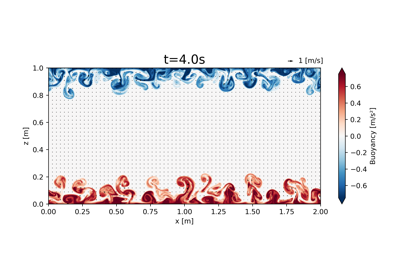

Rayleigh-Bénard Convection

Rayleigh-Bénard Convection

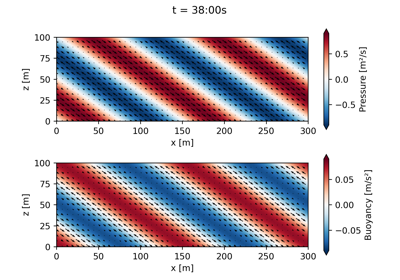

Single Internal Wave

Single Internal Wave

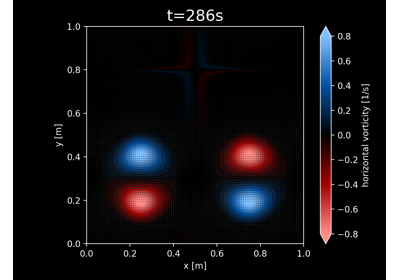

Dancing Eddies

Dancing Eddies

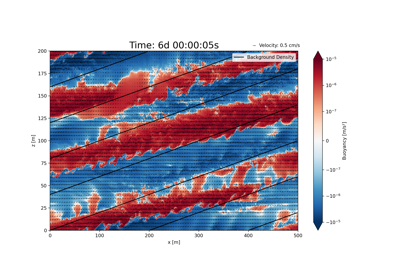

Symmetric Instability

Symmetric Instability

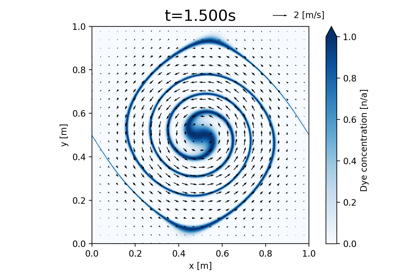

Tracers and Eddies

Tracers and Eddies

Barotropic Instability

Barotropic Instability

name = 'Base Module'

setup(mset: ModelSettingsBase) → None

Start the module

Description

This method is called by the ModelSettings.setup() and sets the ModelSettings as well as the differentiation and interpolation modules.

start() → None

Start the module

Description

This method is called at the beginning of the model run. Child classes that require a start method (for example to start an output writer) should overwrite this method. Make sure to decorate the method with the @module_method decorator.

stop() → None

Stop the module

Description

This method is called by the model at the end of the model run or when the model is reset. Child classes that require a stop method (for example to close an output file) should overwrite this method. Make sure to decorate the method with the @module_method decorator.

update(mz: ModelState) → ModelState

Update the module

Description

This method is called by the model at each time step. Child classes should overwrite this method to update the module. Make sure to decorate the method with the @module_method decorator.

Parameters

mzfr.ModelState

The model state at the current time step.

Returns

fr.ModelState

The updated model state.

enable() → None

Enabling the module means that it will be executed at each time step. Disabled modules are neither initialized nor updated.

disable() → None

Enabling the module means that it will be executed at each time step. Disabled modules are neither initialized nor updated.

is_enabled() → bool

Return whether the module is enabled or not.

reset()

Stop and start the module.

property info: dict

Return a dictionary with information about the time stepper.

Description

This method should be overridden by the child class to return a dictionary with information about the time stepper. This information is used to print the time stepper in the __repr__ method.

property mset: ModelSettingsBase

The model settings

property grid: GridBase

The grid of the model settings

property diff_module: DiffModule

The differentiation module to be used by this module.

property interp_module: InterpolationModule

The interpolation module to be used by this module.

property required_halo: int
