Model

class fridom.framework.model.Model(mset: ModelSettingsBase)

Bases: object

The main model class.

Parameters

msetModelSettingsBase

The model settings.

__init__(mset: ModelSettingsBase) → None

Methods

__init__(mset)
load(file)	Load a model from a file.
reset()	Reset the model (pointers, tendencies).
run([steps, runlen, start_step, start_time, ...])	Run the model.
run_backward([steps])	Run the model backward in time.
save(file)	Save the full model to a file.
start()	Prepare the model for running.
step()	Update the model state by one time step.
stop()	Finish the model run.

Attributes

diagnostics	The module container for all diagnostics.
nan_checker	The NaN checker module.
progress_bar	The progress bar module.
restart_module	The restart module.
tendencies	The module container for all tendencies.
time_stepper	The time stepper.
timer	The timing module.
z	Returns the current state variable.

Examples using fridom.framework.Model

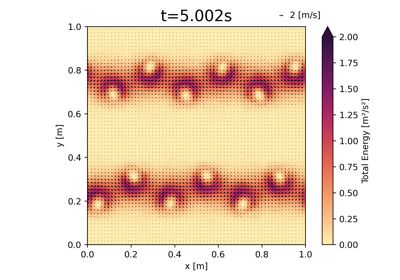

Barotropic Jet

Barotropic Jet

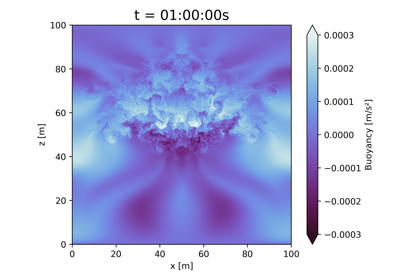

Convection and Closures

Convection and Closures

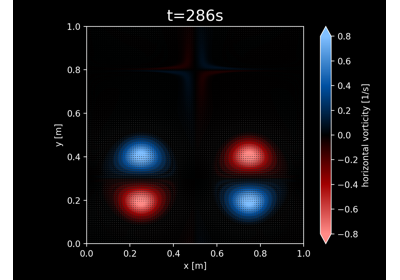

Dancing Eddies

Dancing Eddies

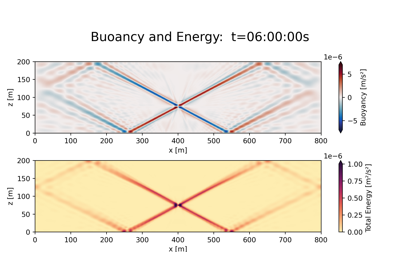

Internal Gravity Wave Maker

Internal Gravity Wave Maker

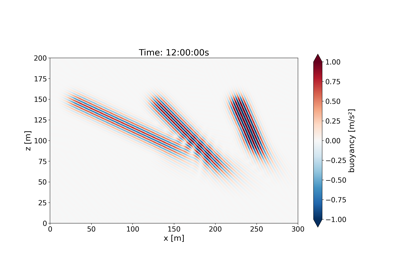

Multiple Wave Makers

Multiple Wave Makers

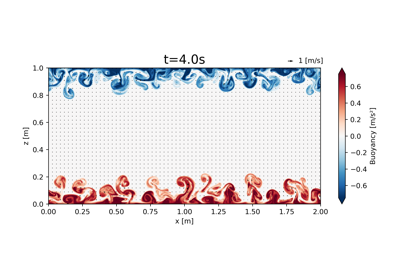

Rayleigh-Bénard Convection

Rayleigh-Bénard Convection

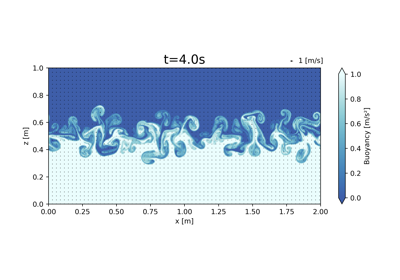

Rayleigh-Taylor Instability

Rayleigh-Taylor Instability

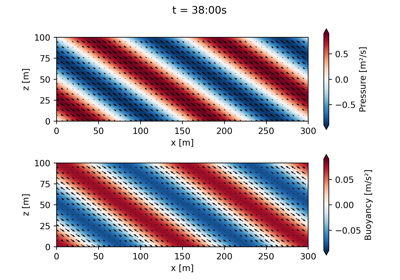

Single Internal Wave

Single Internal Wave

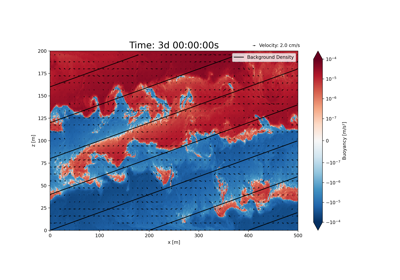

Symmetric Instability

Symmetric Instability

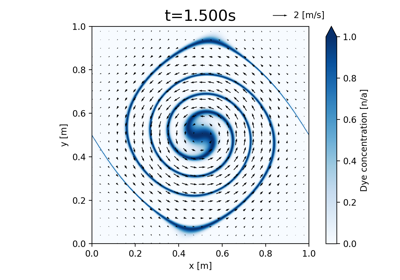

Tracers and Eddies

Tracers and Eddies

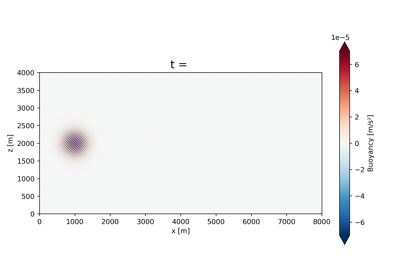

Reflecting Wave Package

Reflecting Wave Package

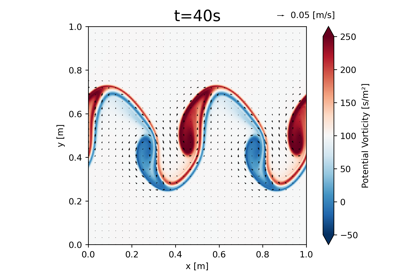

Barotropic Instability.

Barotropic Instability.

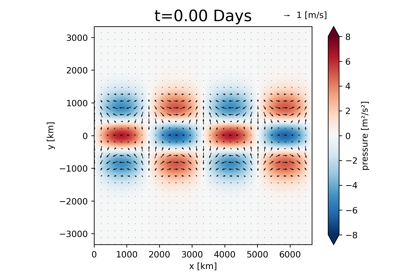

Equatorial Waves.

Equatorial Waves.

start() → None

Prepare the model for running.

stop() → None

Finish the model run.

reset() → None

Reset the model (pointers, tendencies).

run_backward(steps: int | None = None) → None

Run the model backward in time.

Description

This method runs the model backward in time for a given number of steps.

run(steps: int | None = None, runlen: timedelta64 | float | None = None, start_step: int = 0, start_time: datetime64 | float = 0, end_time: datetime64 | float | None = None) → None

Run the model.

Parameters

stepsint (default: None)

Number of steps to run.

runlennp.timedelta64 | float | int (default: None)

Length of the run.

start_stepint (default: 0)

Start iteration of the run.

start_timenp.datetime64 | float | int (default: 0)

Start time of the run.

end_timenp.datetime64 | float | int (default: None)

End time of the run.

step() → None

Update the model state by one time step.

property z: VectorField

Returns the current state variable.

property timer: fr.Timer

The timing module.

property nan_checker: NaNChecker

The NaN checker module.

property progress_bar: ProgressBar

The progress bar module.

property restart_module: RestartModule

The restart module.

property time_stepper: TimeStepper

The time stepper.

property tendencies: ModuleContainer

The module container for all tendencies.

property diagnostics: ModuleContainer

The module container for all diagnostics.

load(file: str) → None

Load a model from a file.

Parameters

filestr

The filename to load the model from

save(file: str) → None

Save the full model to a file.

Parameters

filestr

The filename to save the model to
